**WHITE VARIANT**

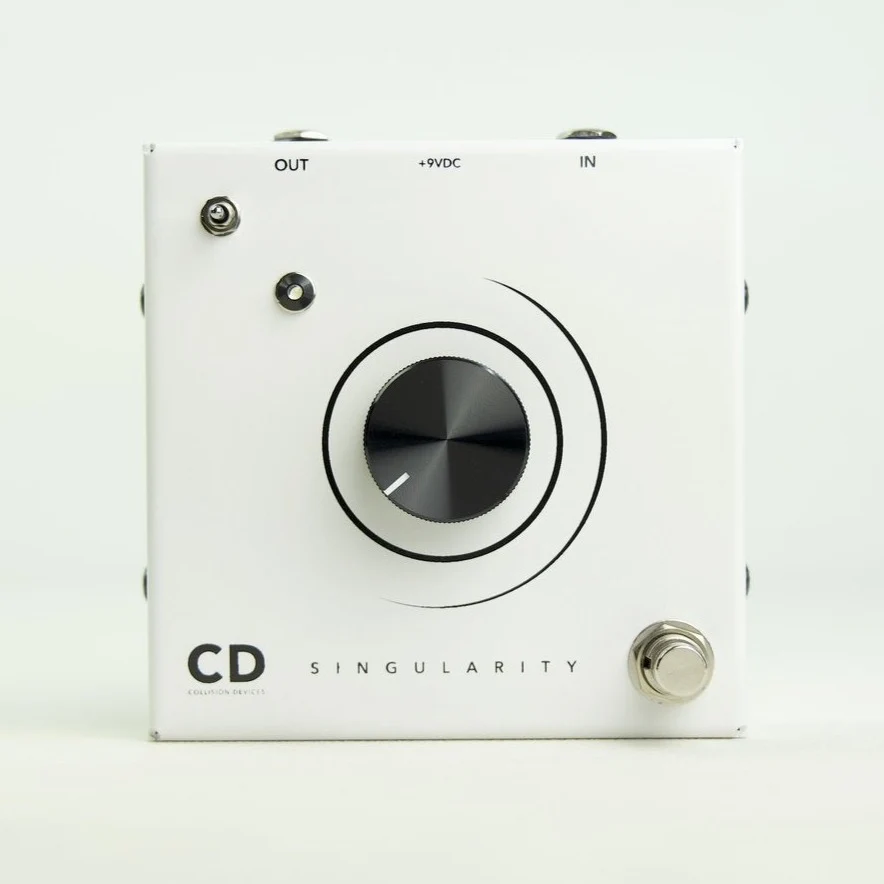

SINGULARITY - It is basically the fuzz section from the Black Hole Symmetry taken apart. There is a single output volume control. It is loud and sounds huge.
We added a toggle switch to cut the output Low Pass at 3 different frequencies :

720Hz, 2,3kHz, 16kHz

The signal passes through a JFET transistor and 3 silicon transistors to end up being destroyed.
Completely built in France. From the enclosure to the circuit. Assembled by hand in our workshop.

Lifetime warranty.”



• Gain : Placed after the Jfet transistor input stage and followed by silicon gain and clipping stages.

• Master : Master volume.

• CutOff : This fader controls the cutoff frequency of the MS-20 style low pass filter. Based on a LM13700 stage. Goes from 15Hz to 44kHz.

• Resonance : Increases the intensity of the signal around the cutoff frequency.

• LPF VOL : VCA - sets the output volume of the filter. Pretty useful to adjust the filter to your setup.

• 2p/4p toggle switch : Select the attenuation curve. Cut at -12dB/octave (2p) or at -24dB/octave (4p).

• Add Fuzz (On/Off) toggle switch :  Add an extra unfiltered fuzz signal. The result is louder and creates cool frequencies boost or cut depending on the cutoff position.

• Serial - // toggle switch : Put the fuzz through the filter - or use both effects in //.

• Expression/CV : The Expression/CV control is linked to the cutoff fader. The cutoff fader value sets the lowest value the EXP pedal can go.
