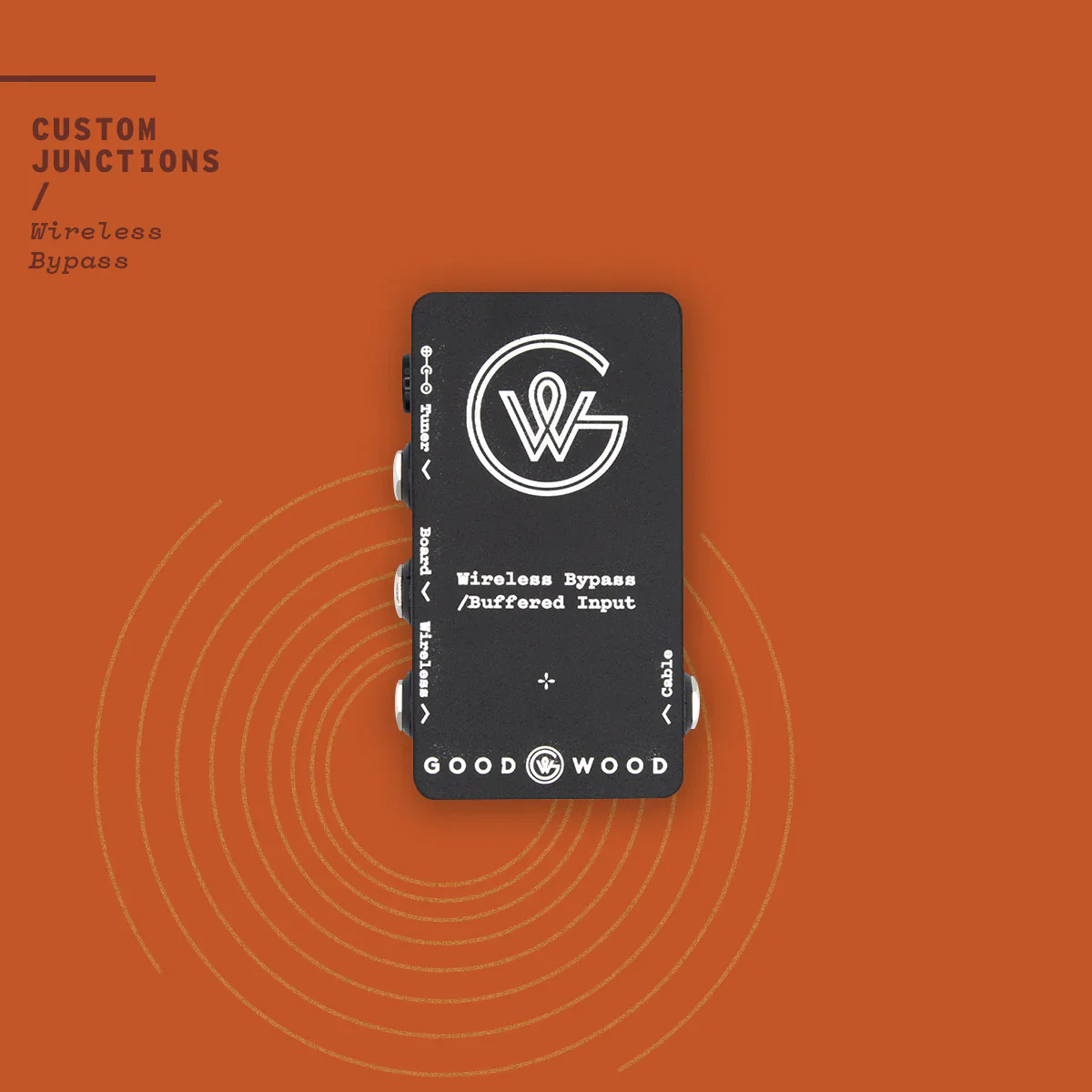

Goodwood Audio Wireless Bypass
Why Wireless Bypass?Ā
The majority of our customers that use wireless transmitters for their guitar get this feature put into their Custom Junction.Ā Why?Ā
If a wireless goes down in the middle of a set you need the quickest alternative to get signal back into your pedalboard and out to your amps.Ā Instead of repatching your board for an instrument cable, just plug a cable into the 'Cable' input and all the 're-patching' is taken care of by the wireless box!Ā
Alternatively - use the Wireless Bypass as an A/B input.Ā Use guitar 1 with your wireless and guitar 2 (acoustic or electric) with a cable.Ā Plug in the cable when you need guitar 2, unplug when you need guitar 1!Ā
This junction comes standard with our ultra high headroom, dual rail buffer and always on tuner output jack!Ā
Ā
Manual and Specs
InputsĀ
WirelessĀ - Plug your wireless in here.Ā When nothing is plugged into the 'Cable' input, signal will be taken from the 'wireless' input and sent to both 'Board' and ' Tuner'Ā
CableĀ - Plug your guitar cable in here (for best results, plug a guitar into the other end of this cable *wink*).Ā Even if signal is being sent to the 'wireless' input, the 'cable' input will still be the input used.Ā Ā
Now the cable input is buffered and sent to the 'board' and 'tuner' outputs.Ā
OutputsĀ Ā
Board / TunerĀ - These outputs see the exact same signal.Ā These are low impedance buffered outputs. Plug one into your tuner and one into the first pedal in your chain. Alternatively, use the tuner out as an alternate send to an amp, another pedal chain or some other great routing idea you have!
Ā
All of our Custom Junctions are designed to last and come with a 2 year warranty.Ā
AllĀ Custom Junctions are made with high quality, durable components.
IMPORTANT - Use onlyĀ 9vDC centre negative plug to power!Ā
Current Draw/Power: 15mA, Center Neg 2.1mm
Box Dimensions:Ā 113 x 60 x 31
Input Impedance (both inputs same): 1Meg
Output Impedance: 500 ohmsĀ
