PRODUCT DESCRIPTION

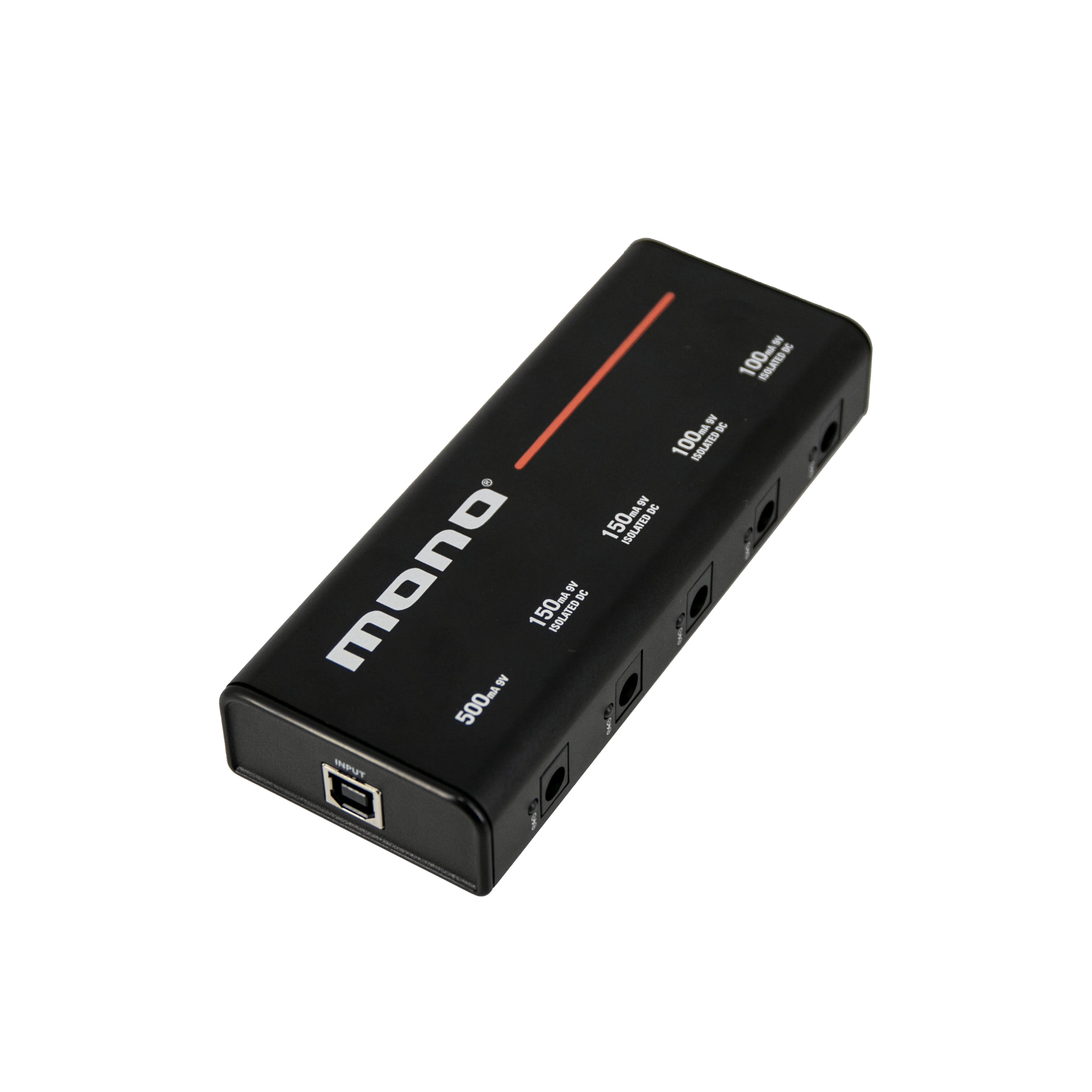

The MONO Power Supply, Small is a USB-powered, ultra-low noise unit built for small pedalboards. You can connect up to 5 pedals and power the unit with any USB-A wall adapter or go mains-free and plug into a power bank. Each Power Supply is built with a lightweight and durable aluminum casing and at just 1” depth, will fit underneath the shallowest of pedalboards. When you’re ready to step up to a bigger board, you can simply link the MONO Power Supply, Small, to a Medium or Large and power up to 15 pedals.

IN THE BOX

1. MONO Power Supply, Small
2. 2.1mm x 5.5mm Power Cable Short (x5)
3. 3-way Daisy Chain
4. USB-A to USB-B Cable
5. MONO Power Supply Mounting Brackets (x2)
6. M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
7. Hook-and-Loop Tape

FEATURES

• Input filter and multi-stage output filters for an extremely low noise floor
• Short circuit, overload and thermal protection
• Energy efficient usage and design

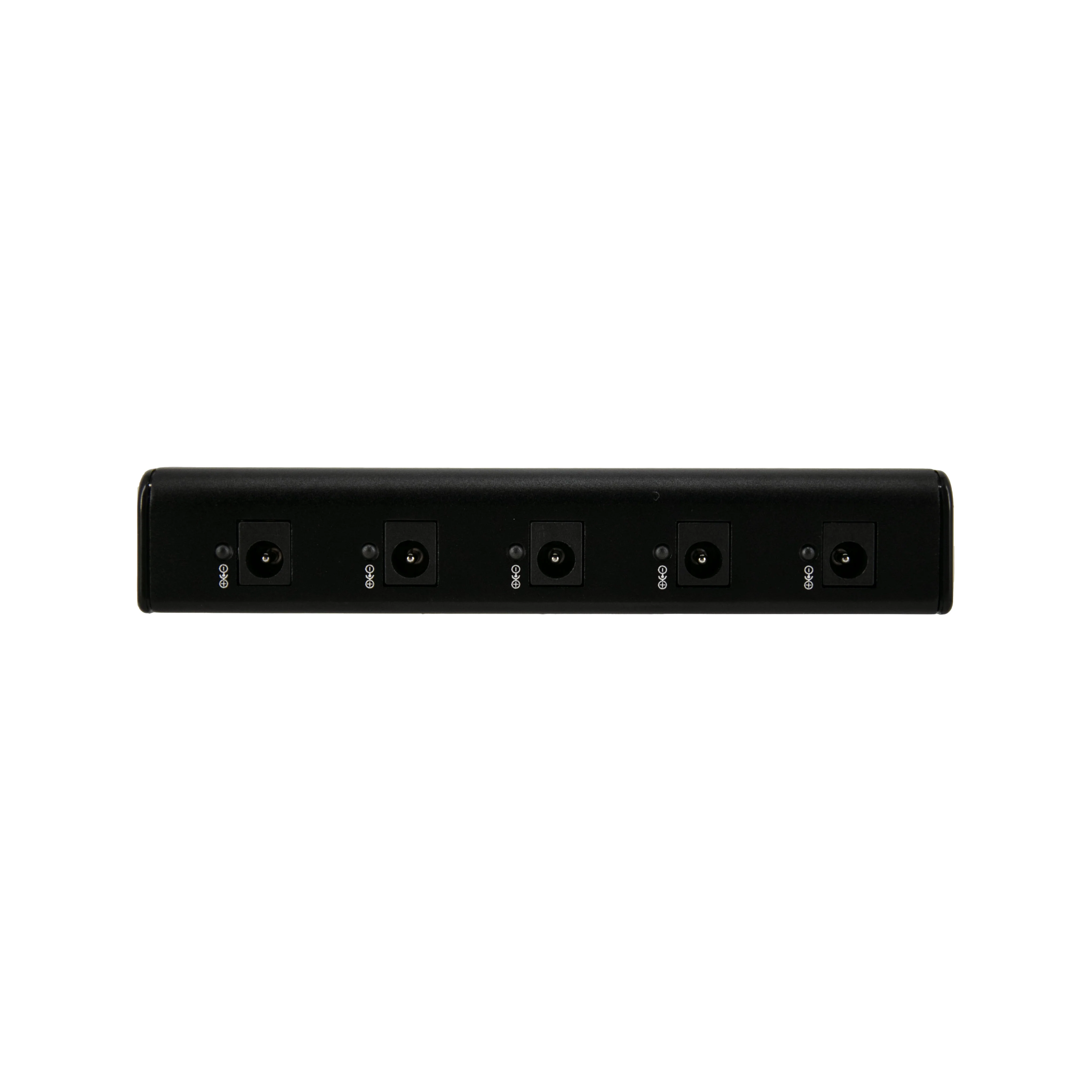

• 5 isolated, low-noise DC outputs
• Ultra slim profile below 1” for mounting below pedalboards
• Ultra light 152g (5.36oz) to always remain portable
• Durable aluminium enclosure for all playing conditions
• Universal compatibility with any power source worldwide
• Individual status LED for each outlet to show output status
• 5 power cables included
• 3-way daisy chain included
• Light weight, rugged mounting brackets included
• Premium hook-and-loop tape for an alternative form of mounting included

TECH SPECS

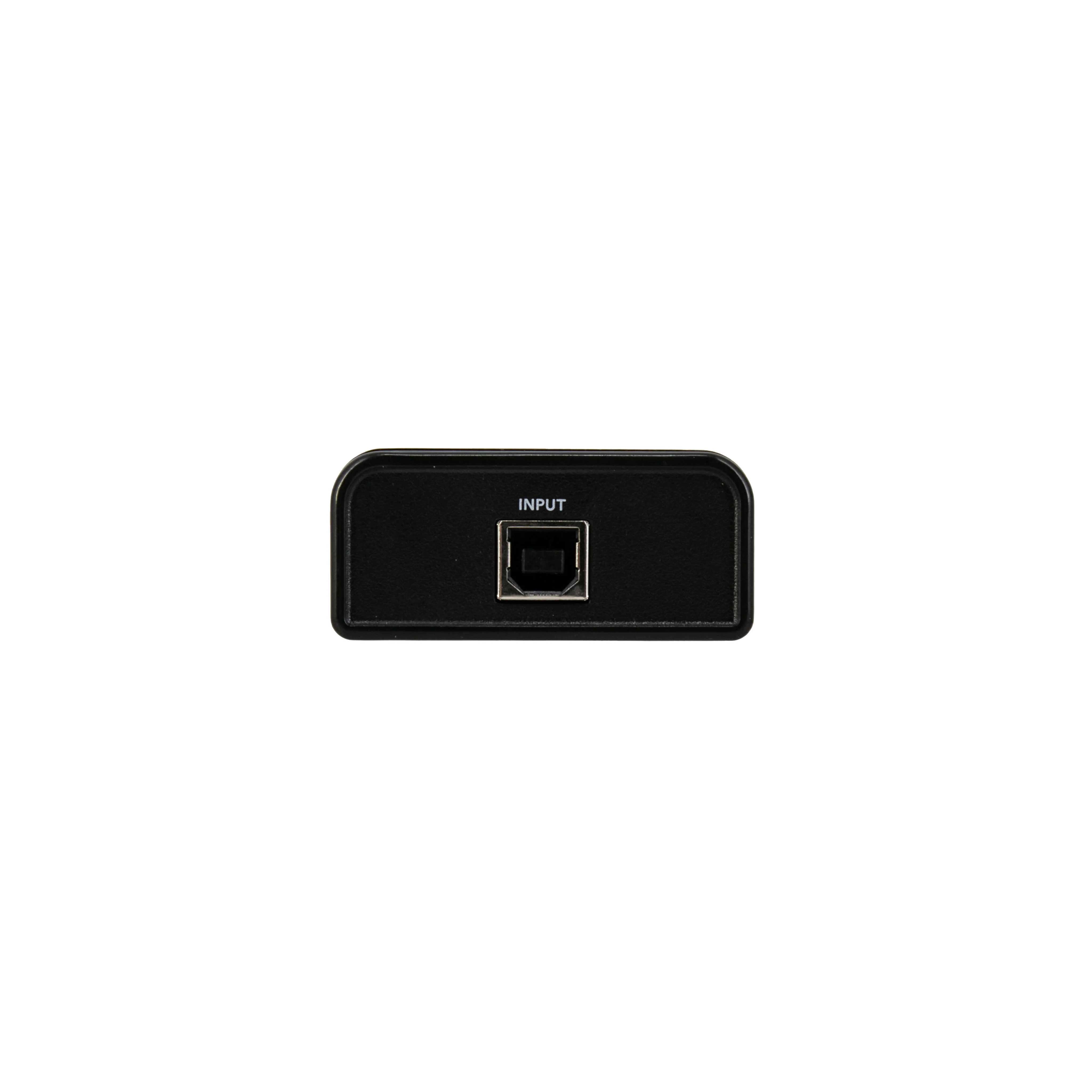

• Input: 5V USB-B @ 2.1A

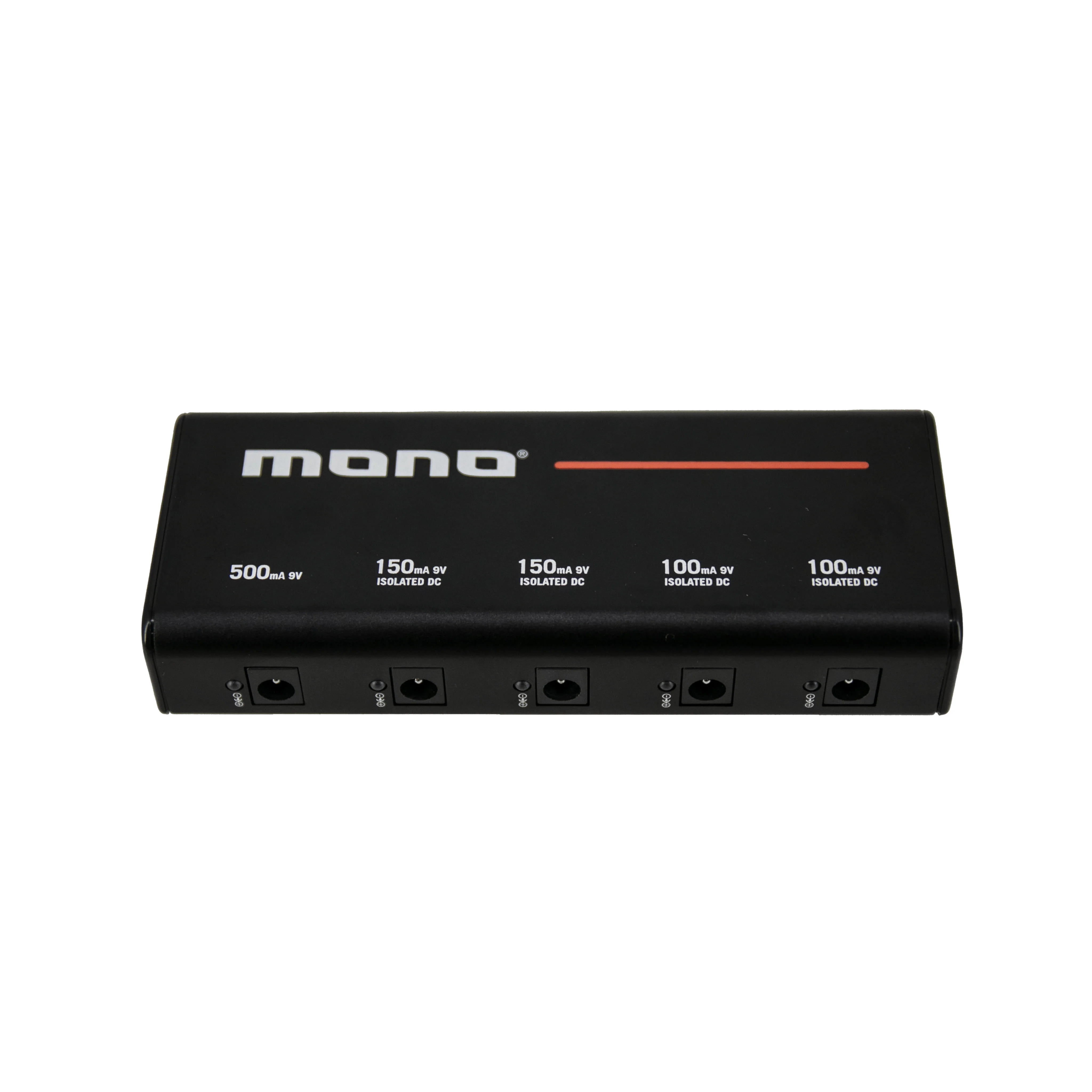

• Outputs:
• 9V DC @ 150mA center negative (x2)
• 9V DC @ 100mA center negative (x2)
• 9V DC @ 500mA center negative (x1)
• Weight: 152g (5.36oz)
• Size: 140 x 56 x 25 mm (5.51 x 2.20 x 0.98 inches)
